172D-26


Stock Availability: 100

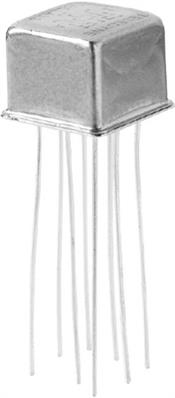

Product image for reference only. For precise specifications, refer to datasheet.

Manufacturer: Teledyne Relays
Mfg #: 172D-26
Richardson RFPD #: 172D-26
Description: RF Relay
Min/Mult: 50/1
Datasheet 172D-26 Data Sheet
EDA/CAD Models

The 172 Centigrid® relay is an ultraminiature, hermetically sealed, armature relay for commercial applications. Its low profile height (0.280") and 0.100" grid spaced terminals, which preclude the need for spreader pads, make it an ideal choice where extreme packaging density and/or close PC board spacing are required. The basic operating concept and internal structure are similar to Teledyne's DPDT 114 Centigrid® relay. The Series 172 relay has an internal discrete silicon diode for coil transient suppression. By virtue of its inherently low intercontact capacitance and contact circuit losses, the 172 relay is an excellent subminiature RF switch for frequencies well into the UHF spectrum. Applications include telecommunications, test instruments, mobile communications, attenuators, and automatic test equipment.

Key Attributes Value Search Similar
Type DPDT
Switch Type 2 Form C, Non-Latching
Surface Mount No
Frequency (GHz)
Isolation (dB)
Insertion Loss (dB)
Voltage (VDC) 26.5
Package Type Centigrid, Through-Hole

Datasheets

  172

Stock

Ready for Immediate Shipment

Stock: 100 Units

Order

Pricing in (USD)

Unit Price:
50:  $69.6000
100:  Get Quote
