MABA-000001-50KIT1


Stock Availability: 0

Product image for reference only. For precise specifications, refer to datasheet.

Manufacturer: MACOM Technology Solutions
Mfg #: MABA-000001-50KIT1
Richardson RFPD #: MABA-000001-50K
Description: Balun Transformer Kit
Min/Mult: 13/1
Datasheet MABA-000001-50K Data Sheet

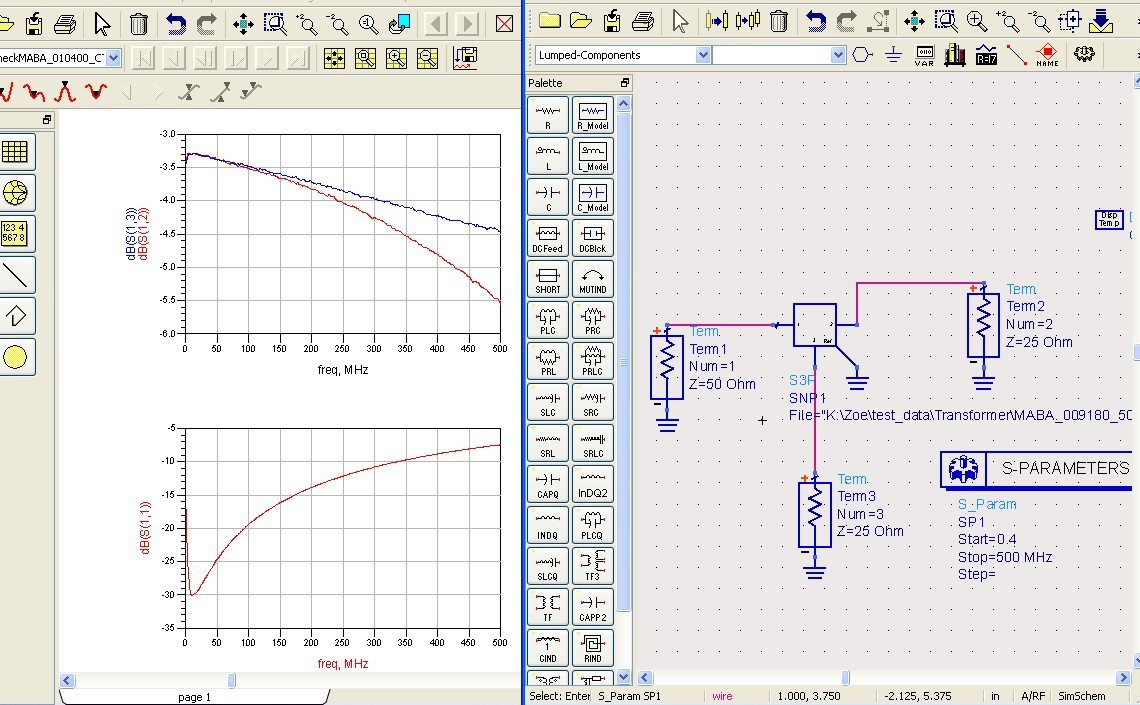

EDA/CAD Models

The complete MABA-000001-50KIT1 Transformers Design Kit from MACOM Technology Solutions includes 10 samples each of 15 different transformer/balun models (total 150 pieces), and a CD containing detailed product specifications. The transformers and baluns are intended for various applications in wireless infrastructure, mobile phones, wireless data transceivers, industrial and medical equipment, and consumer electronics products.

Highlights of this kit include:

           • Standard impedance ratios from 1:1 to 1:16

           • Frequency Ranges from 1 - 3000 MHz

           • Models for balanced/unbalanced conversion

           • Each model specified at 50 ohm nominal (i.e. characteristic) impedance


Key Attributes Value Search Similar
Technology Wirewound
Minimum Frequency (MHz) 1
Maximum Frequency (MHz) 3000
Ratio 1:1 to 1:16
